How to create a Bar chart

How to create a Bar chart

Overview

A Bar Chart compares metrics from different categories using bars. Bar lengths are used to indicate the magnitude of each value and colour is used to differentiate groups.

Creating a Bar Chart

Step 1: Select the "Charts" tab in the top bar,

Step 2: Create a New Chart,

> On the Charts page,
> Click on the "+ Chart" button to initiate the creation of a new chart.

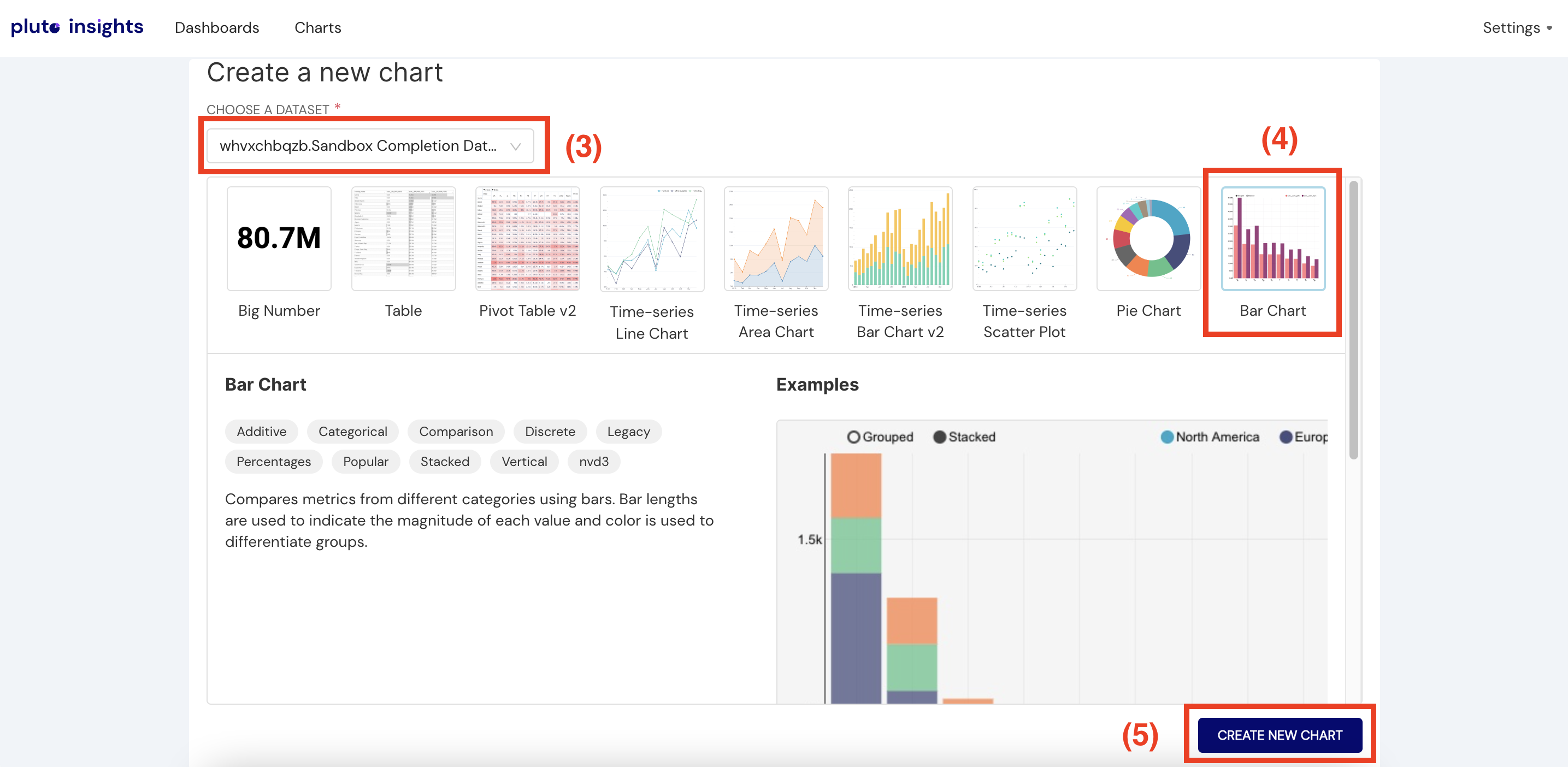

Step 3: Select a Dataset,

> In the "Dataset" section,
> Click on the dropdown menu and select the dataset you want to use for your bar chart.

Step 4: Select "Bar Chart" as the Chart Type.

Step 5: Click on "Create New Chart".



Step 6: Specify Your Metrics,

> In the "Metrics" section, click on the "Save" button.
> From the dropdown menu, select the metric you want to display in your bar chart.

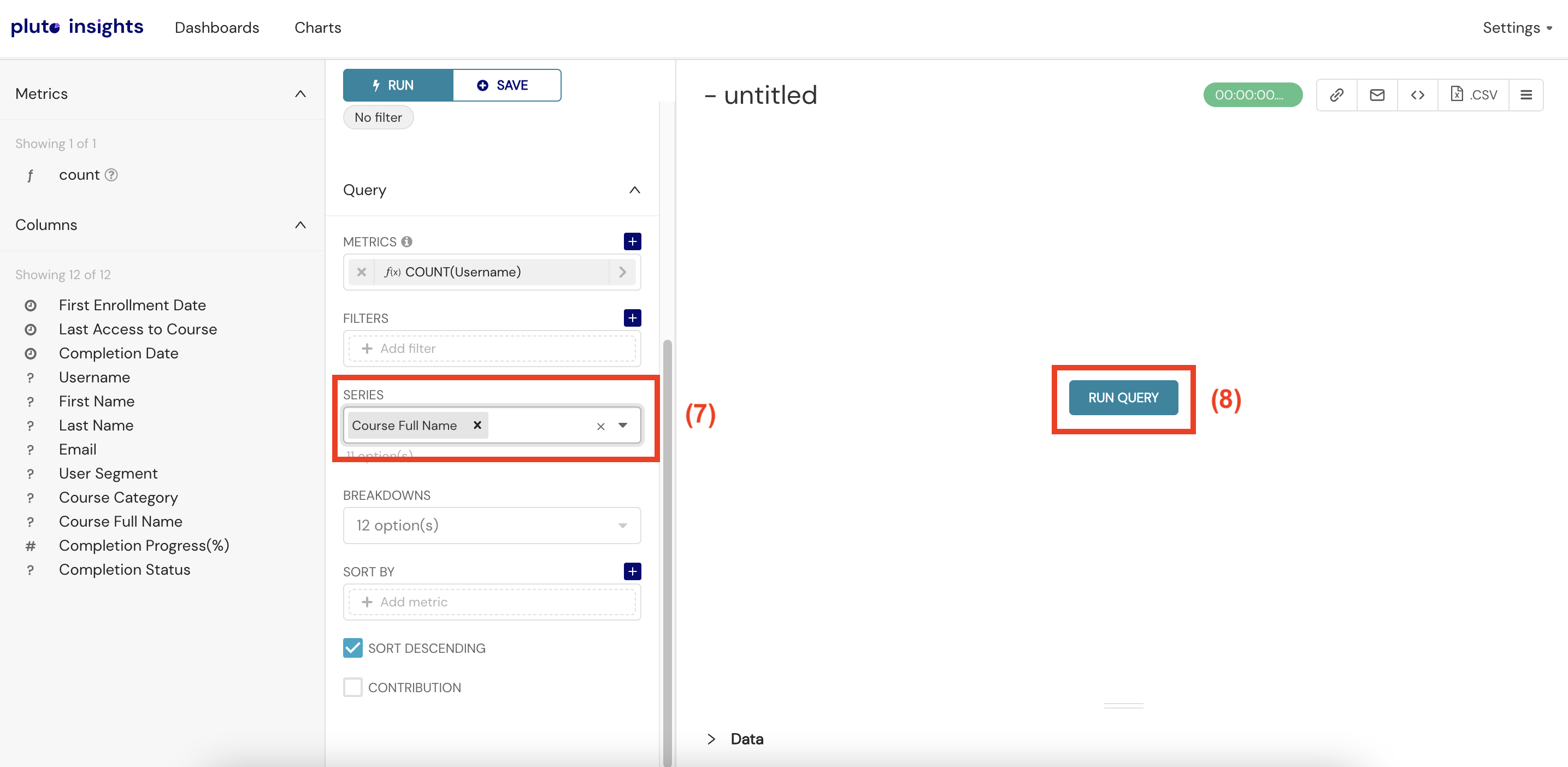

Step 7: Define Your Series,

> From the dropdown menu, select the column(s) that will act as your series.

Step 8: Run Query,

> Click on the "Run Query" button to generate your bar chart based on the parameters you've defined.

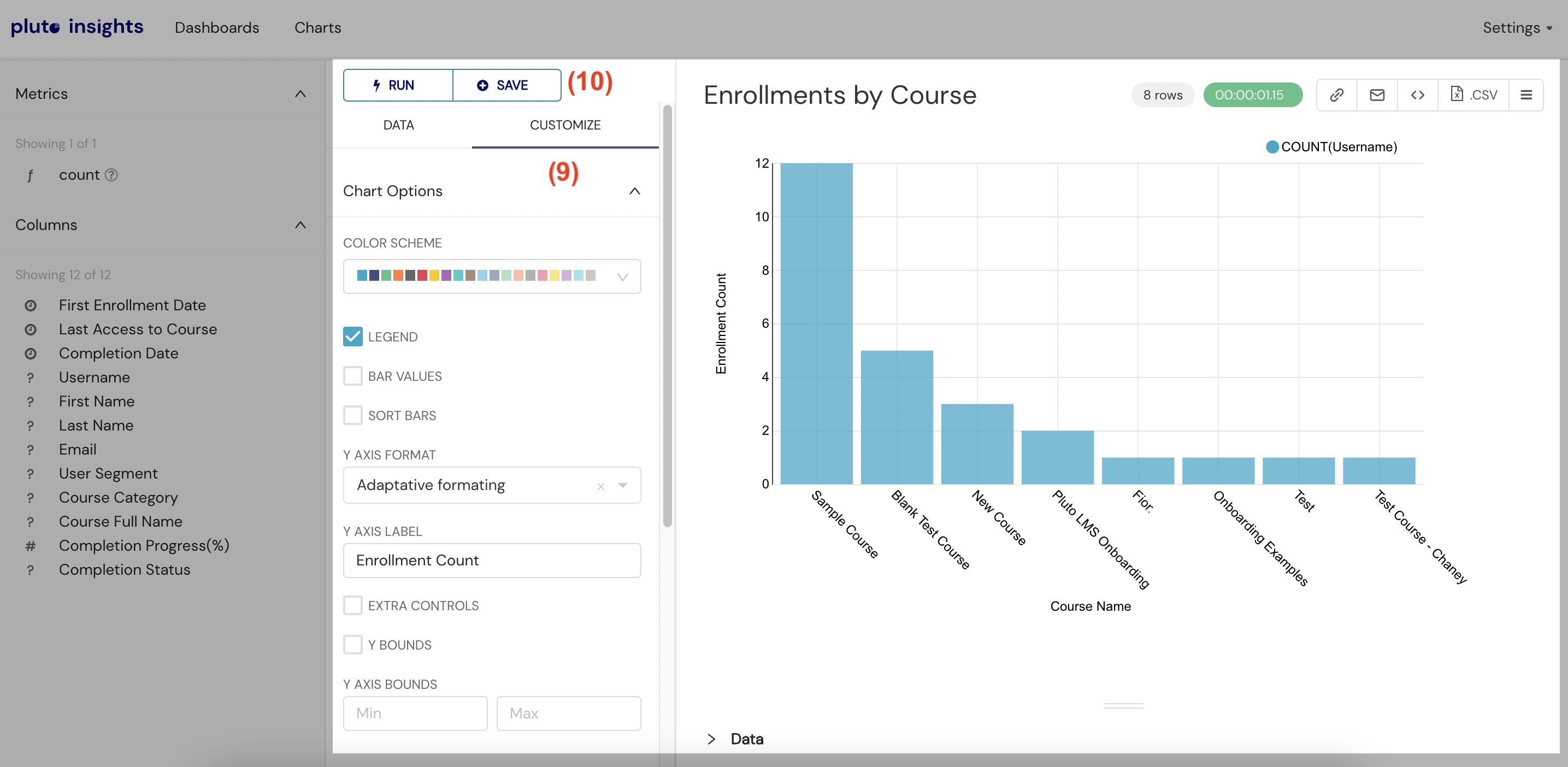

Step 9: Customize Your Chart,

> Use the customization options provided by Pluto Insights to adjust the appearance of your chart.
> You can change the colour scheme, add a legend, set a title, and more.

Step 10: Save Your Chart,

> To save your chart, click on the "Save" button.
> Provide a name for your chart and, if desired, a description.
> Click "Save" again.

Your chart will now be accessible under the "Charts" section for future reference.
